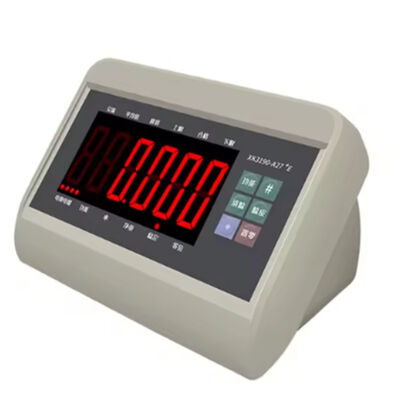

Indicador De Peso XK3190-A27E T7E LED LCD Display Digital Weighing Indicator for Electronic Platform Scale

1
MOQ
交渉可能
価格
Indicador De Peso XK3190-A27E T7E LED LCD Display Digital Weighing Indicator for Electronic Platform Scale
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
製品名: 計量指数
表示タイプ: 導かれた
材料: プラスチックケース
電源: 220V 50HZか110V 60HZ
荷重計の感受性: 1.5~3mV/V
色: グレー
ハイライト:

XK3190-A27E digital weighing indicator

,

LED LCD display weight indicator

,

electronic platform scale indicator

基本情報
起源の場所: 中国
ブランド名: YAOHUA
証明: Non/OIML
モデル番号: XK3190-T7+E
お支払配送条件
パッケージの詳細: カートン
受渡し時間: 15-20日
支払条件: T/T、ウェスタンユニオン
供給の能力: 1000pcs/m
製品の説明
Indicador De Peso XK3190-A27E T7E LED LCD Display Digital Weighing Indicator for Electronic Platform Scale
Specifications:
STANDARD FUNCTION:
  • Peak hold function
  • Animal weighing function
  • Kg/lb switch function
  • Pre-set tare weight function
  • High-ok-low function
  • Weight accumulate , accumulate display ,accumulate clear fuction
  • ZERO trucking range , ZERO setting ( switch on / manually ) range , speed rate of zero Setting could be set separately .
  • Battery indication and alarm for low battery protection .
PARAMETRES:
Input signal range -19mV-19mV
Load cell excitation DC5V;
Max. connection number of load cell 4 at 350ohm
Load cell connection mode 6 wires
Verified counts 3000
Display 6 digits LED,6status indication
Display range -999999-999999
Power supply AC 220v : 50-60hz DC In-built rechargeable battery
Description:
  1. Weighing Indicator YH-T7E adopts fast speed ,
  2. High precision A/D conversion technology ,
  3. Widely applied in electronic platform scale,
  4. Electronic floor scale ,
  5. And so on alike static weighing system equipped with 1-4 loadcell .

Indicador De Peso XK3190-A27E T7E LED LCD Display Digital Weighing Indicator for Electronic Platform Scale 0Indicador De Peso XK3190-A27E T7E LED LCD Display Digital Weighing Indicator for Electronic Platform Scale 1

FEATURES:
  1. Low power consumption, provided with different kinds of power saving mode.

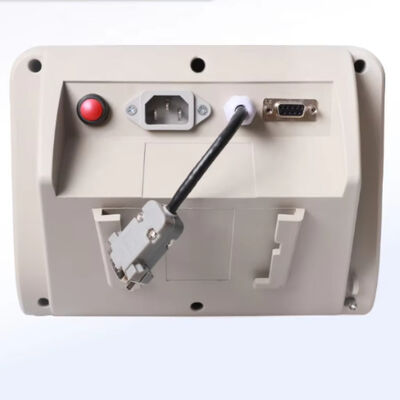

  2. Optional for RS232 communication with selectable baud rate and scoreboard interface Sending by 20mA current loop .
  3. Various kind of weighing mode , with easy operation
  4. AC/DC both available , could be recharged during power off .
Applications:

It is used in electronic platform scale, electronic floor scale and so on like static weighing system equipped with 1~4 350Ω load cell

Competitive Advantage:
  1. Professional manufacturer with 10 years
  2. OEM/ODM service acceptable
  3. 100% inspection
  4. Warranty: one year
