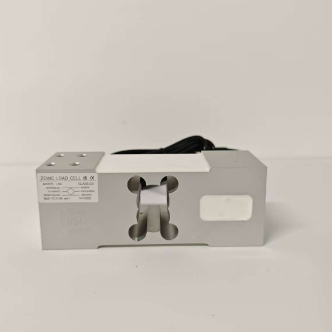

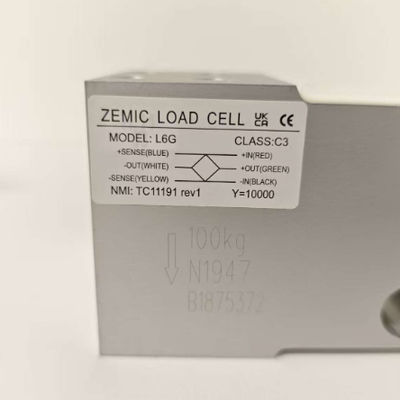

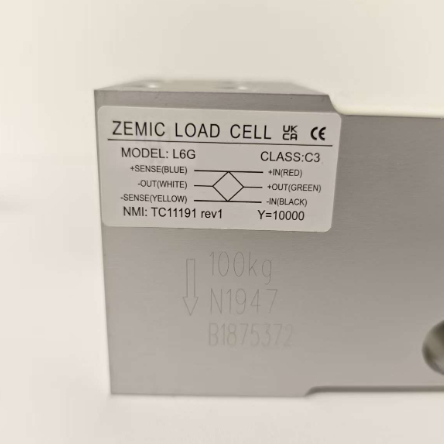

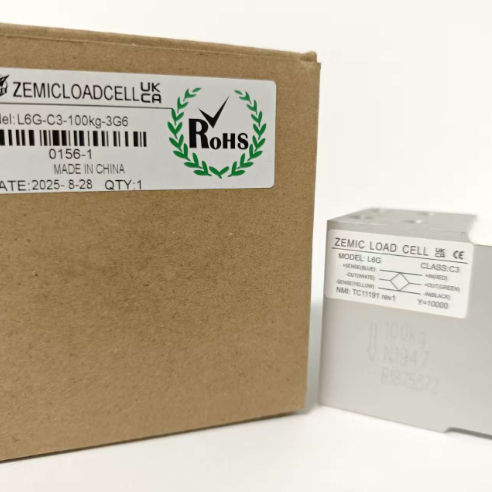

zemic load cell 100kg Weight Sensor L6G class C3
Specifications:
| Rated Load: | 50kg~1000kg | Insulation Resistance: | ≥5000MΩ |
| Sensitivity: | (2.0±0.1%) mV/V | Operating Temp.Range: | -30~+70℃ |
| Combined Error: | ±0.03% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.03% F.S | Ultimate Over Load: | 200%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP65 |
| Input Resistance: | 385±5Ω | Element Material: | Aluminum |
| Output Resistance: | 353±2Ω | Cable: | Length=L:3m |
| Insulation Resistance: | ≥5000MΩ | Citation: |
GB/T7551-2008 / OIML R60 |
Description:
1. Zemic L6G load cells are available in the capacities 50~1000kg .And the customized capacity is available by request.
2. Aliminum construction,making it in all kinds of environments. Silicon adhesive sealed, surface anodized and anti-corrosion.
3. good self-aligning ability, suitable for electronic platform scales,automobile testing facilities,hopper scales and other electronic weighing devices.
Applications:
Suitable for pricing scales, platform scales and other electronic weighing devices.
Competitive Advantage:
1. Low MOQ: It can meet your promotional business very well.
2. OEM Accepted : We can produce any your design .
3. Good Service : We treat clients as friend.
4. Good Quality :We have strict quality control system .Good reputation in the market.
5. Fast & Cheap Delivery: We have big discount from forwarder.
