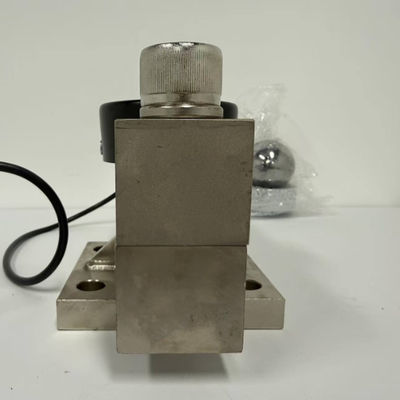

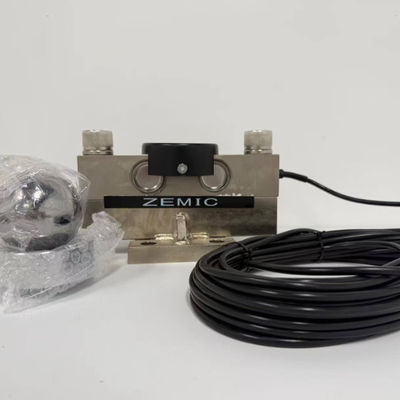

Original Factory Cell Load 30 Ton Keli Load Cell Sensors Jembatan Timbang Grains HM9B for Weighbridge Timbangan
| Capacity | t | 10/20/25/30/40SE/40/50 | ||||
| Accuracy | C1 | C2 | C3 | A5M | B10M | |
| Approvals | OIML R60 C3 | |||||
| Maximum number of verification intervals |
n max | 1000 | 2000 | 3000 | 5000 | 10000 |
| Minimum load cell verification interval |
v min | Emax/3000 | Emax/5000 | Emax/7500 | Emax /15000 |
Emax /10000 |
| Combined error | (%FS) | ≤±0.050 | ≤±0.030 | ≤±0.020 | ≤±0.026 | ≤±0.050 |
| Creep | (%FS/30min) | ≤±0.038 | ≤±0.024 | ≤±0.016 | ≤±0.017 | ≤±0.040 |
| Temperature effect on sensitivity |
%FS/10℃) | ≤±0.028 | ≤±0.017 | ≤±0.011 | ≤±0.013 | ≤±0.040 |
| Temperature effect on zero |
(%FS/10℃) | ≤±0.047 | ≤±0.023 | ≤±0.015 | ≤±0.014 | ≤±0.020 |
| Output sensitivity | mv/v) | 2.0±0.002 | 2.3±0.002 | 2.4±0.002 | 1.9±0.002 | 1.8±0.002 |
| Input resistance | (Ω) | 700 ±7 | 775 ±5 | 750 ±7 | ||
| Output resistance | (Ω) | 700 ±7 | ||||
| Insulation resistance | (MΩ) | ≥ 5000(50VDC) | ||||
| Zero balance | (%FS) | 1.5 | ||||
| Temperature, compensated | (℃) | -10~+40 | ||||
| Temperature,allowed | (℃) | -35~+65 | ||||
| Excitation, Recommended | (V) | 5~12(DC) | ||||
| Excitation,Max | (V) | 18(DC) | ||||
| Safe overload | (%FS) | 150 | ||||
| Ultimate overload | (%FS) | 300 | ||||
Capacity:10t to 50t.
High accuracy.
Alloy steel construction.
Easy installation, reliable performance.
1. HM9B load cell are available in the capacities 10t to 50t.
2. Alloy steel construction, nickel plated , hermetically welded,oil-proof,waterproof and anti-corrosive gas and medium making ,it suitable for all kinds of environments.
3. Dual shear beam, Suitable for electronic truck scales,railway scales and other electronic weighing devices.
4.It is safety and anti-explosion product that can be used in atrocious weather and hazardous areas.
It is used in truck scale/weighbridge
